Home Tab Order：Click and hold the icon to drag and change the order of the home page tabs.


Dashborad List

1. Add Dashboard

Click the "Add+" icon to enter the dashboard edit page.

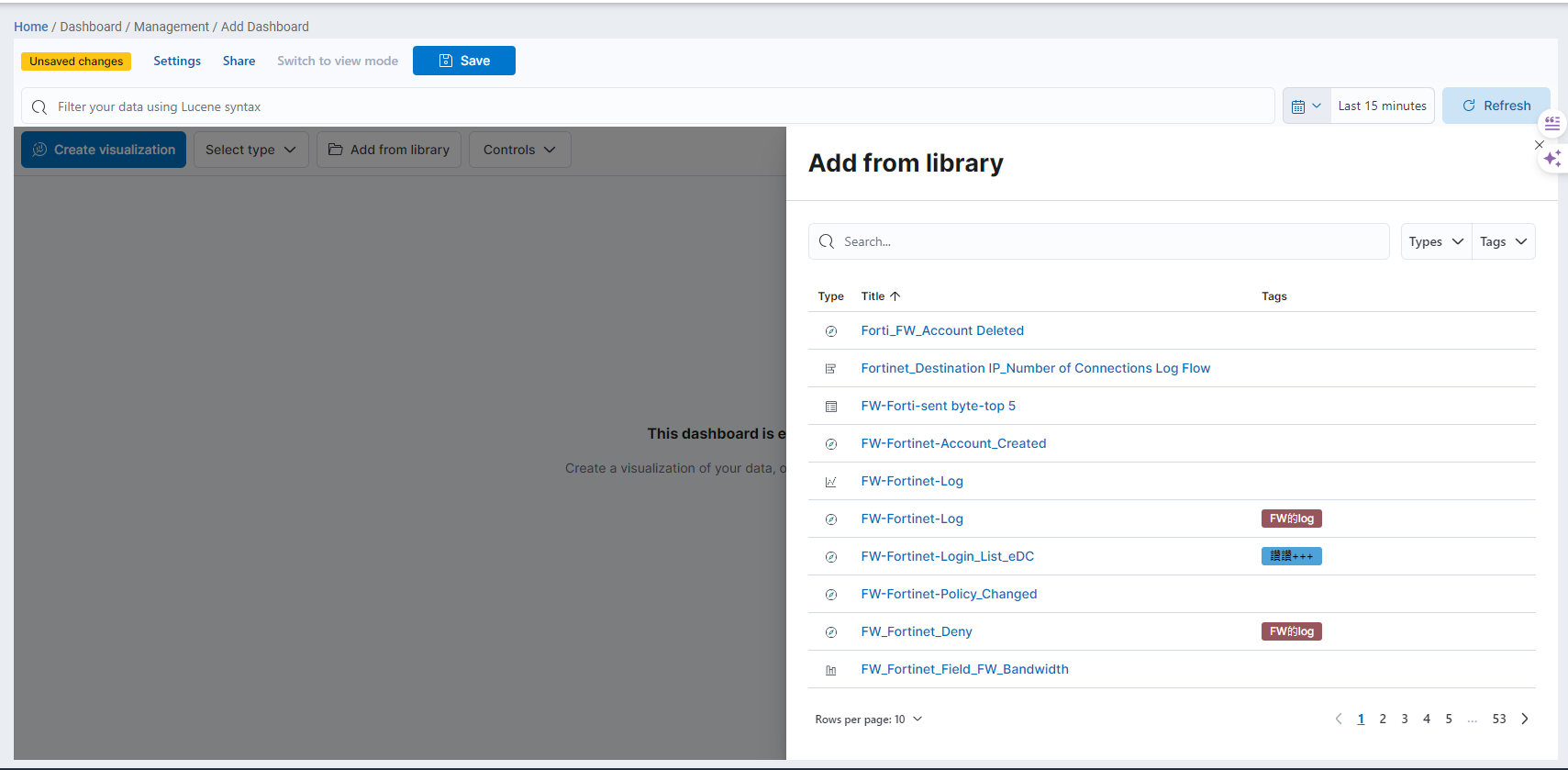

  • Click "Add from library" to list the completed visual units.
  • Click the name of the visual unit you wish to select to add it to the dashboard.


  • Click "Save": Enter the dashboard title and then click "Save."

2. Edit Dashboard

Click the edit icon  to enter the dashboard edit screen.

3. Delete Dashboard

Click the edit icon to enter the dashboard edit screen.

4. Export Dashboard

Click the export icon to export the dashboard for backup purposes.

5. Dashboard Permissions

Click the dashboard permissions icon to set the usage permissions for the dashboard.

6. View List Checkbox

Check the checkbox to set the dashboard as a view page tab.

Visualize

Features

1. Add：Click to begin creating a visualization.

2. Delete Selected：Selecting the visualizations to delete and clicking the button allows multiple deletions.

3. Export：Click once to export all visualizations.

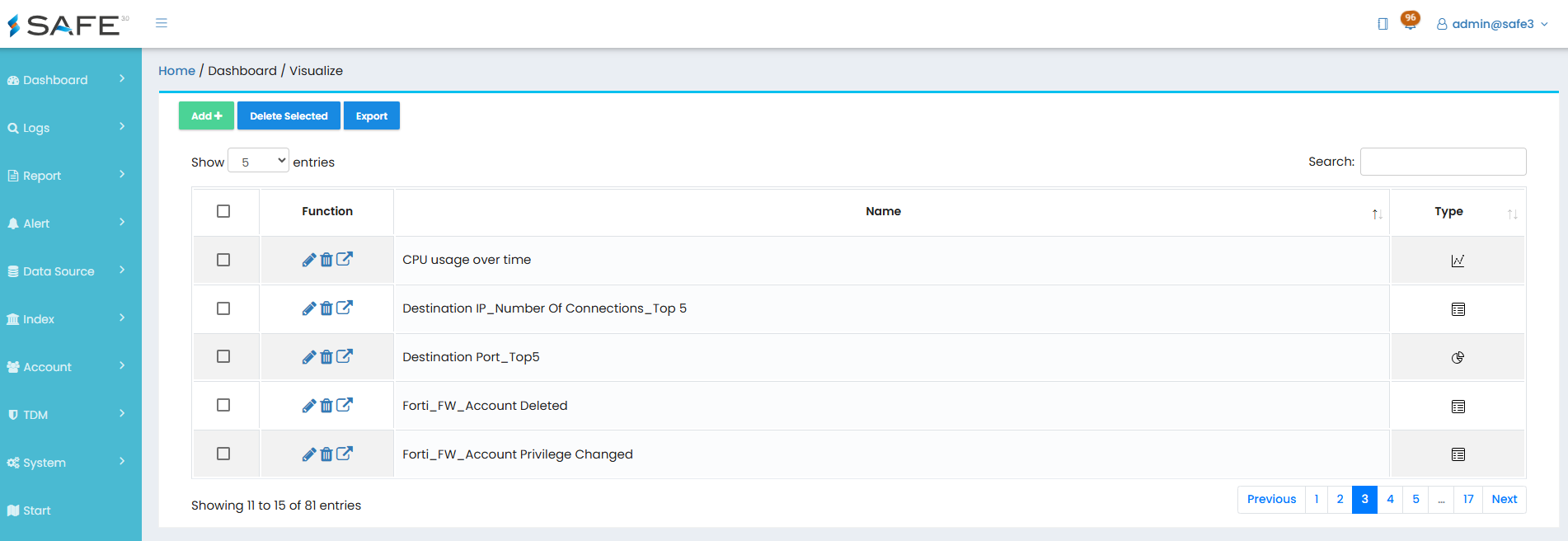

vis en2

Create a Visualization

1. Click "Add" to begin creating a visualization.

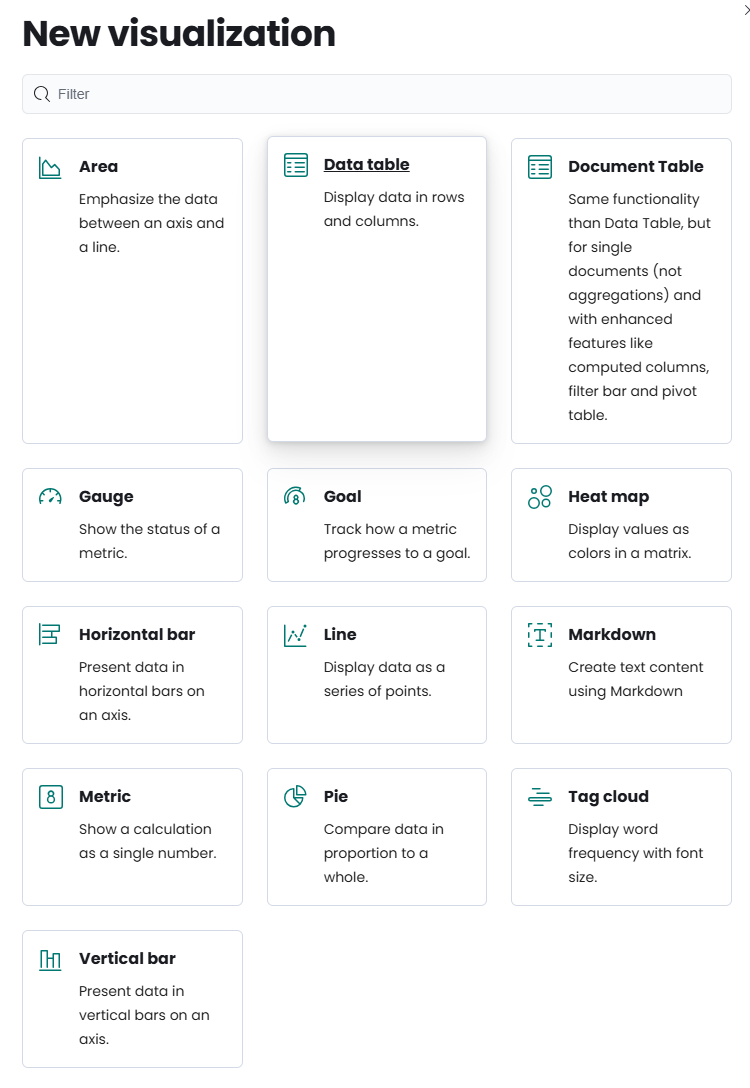

2. Select the type of visualization. The report only supports: Vertical bar, Line chart, Pie chart,Area, DOCument table and Data table.

vis en3

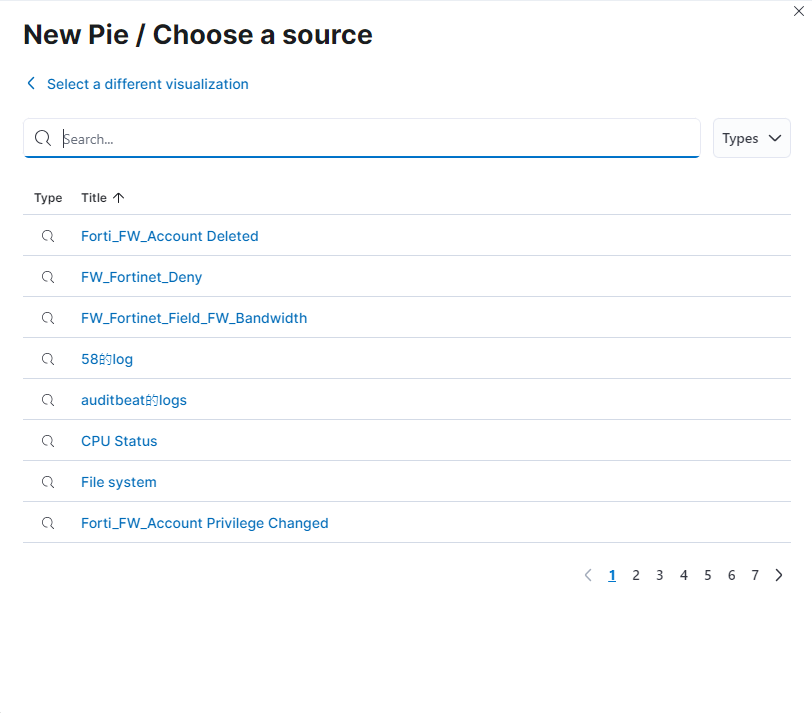

3.Choose the data source for the visualization.


4.Depending on the visualization type, select the required indicators and parameters.

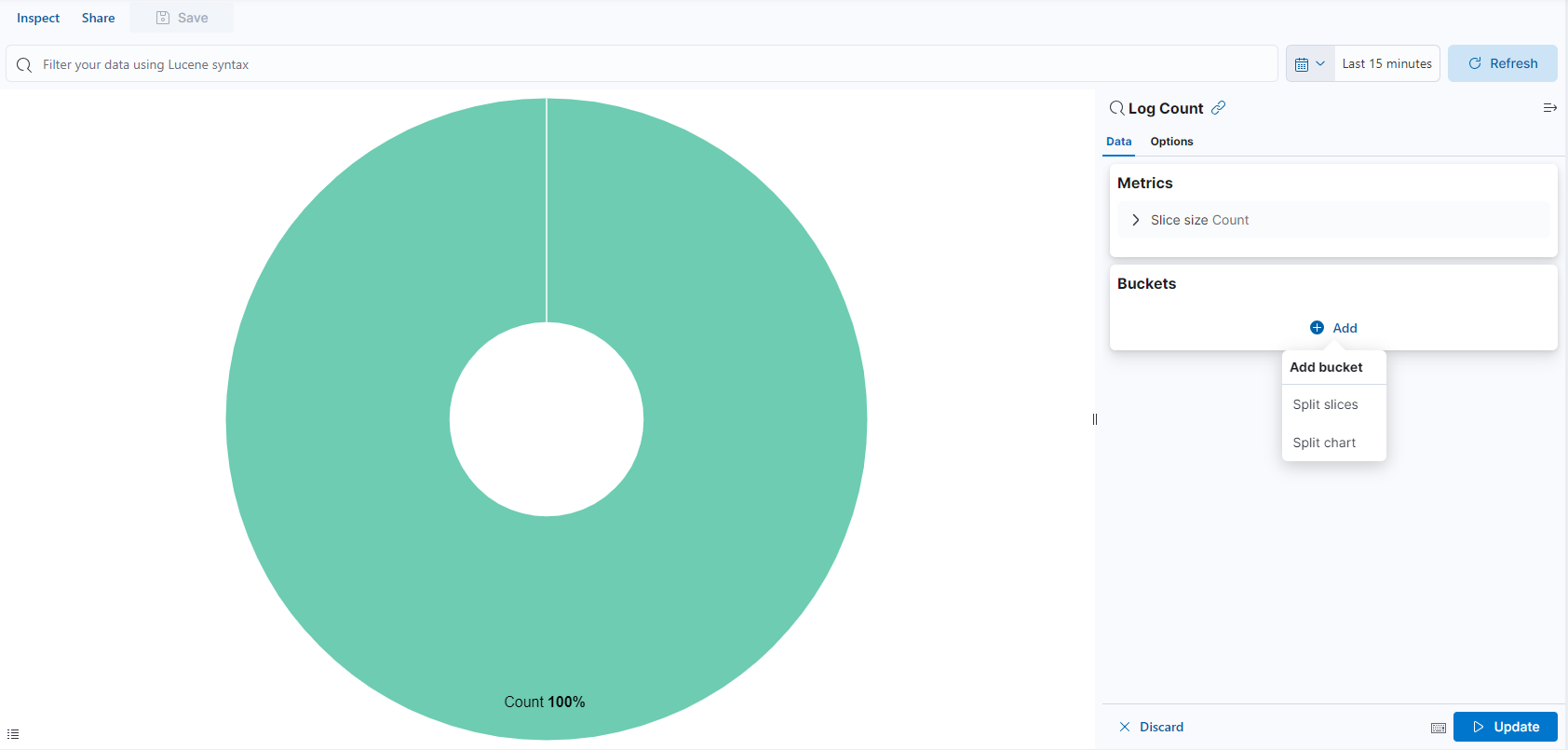

  • Choose the split slices.

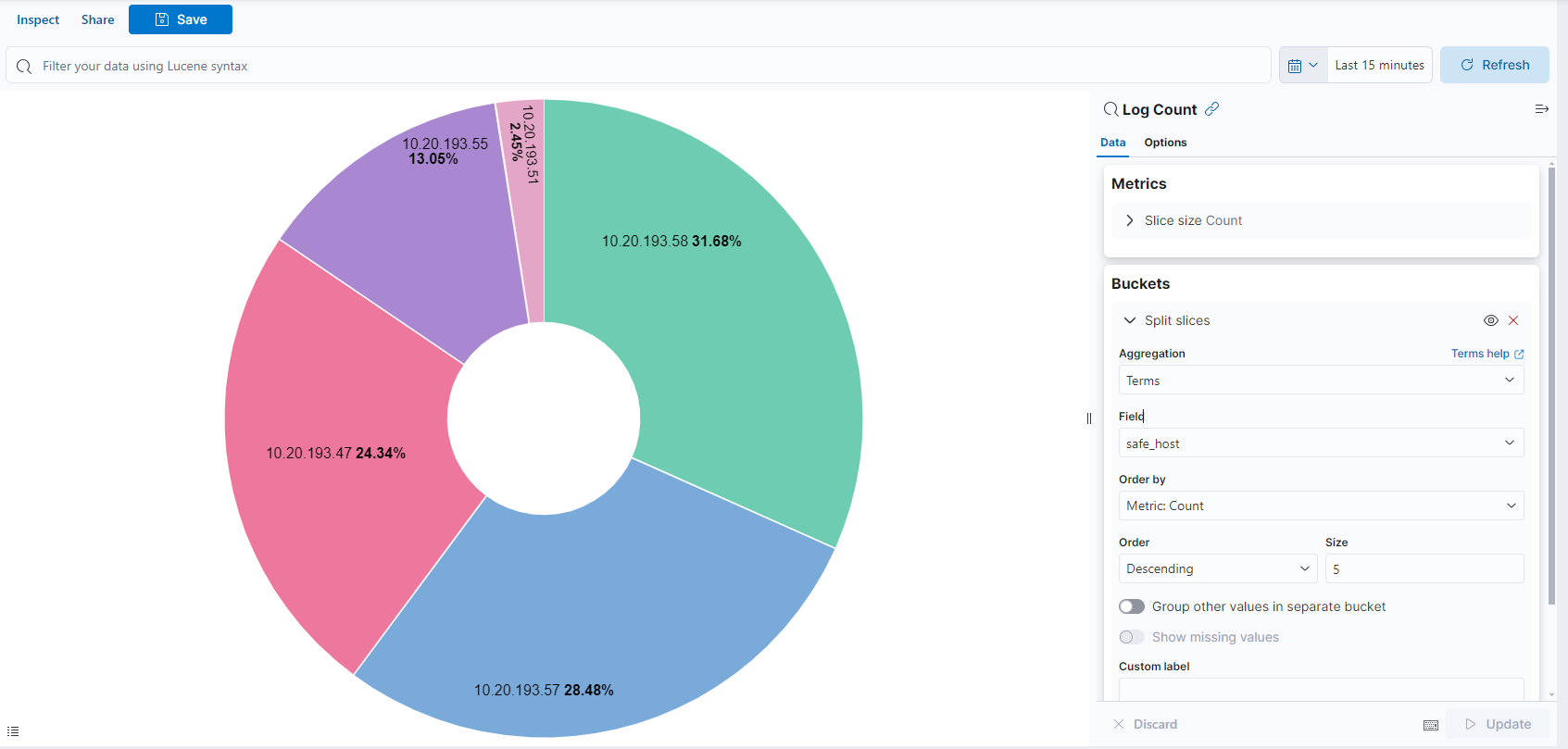

  • Based on drawing requirements, choose the aggregation target. In this example, select "Terms," with the field set to "safe_host" and size set to 5 to filter the Top 5 information. After setting, click "Update" to apply it to the visualization on the left.


5. Click Save, enter a title, and complete the creation of the visualization.
